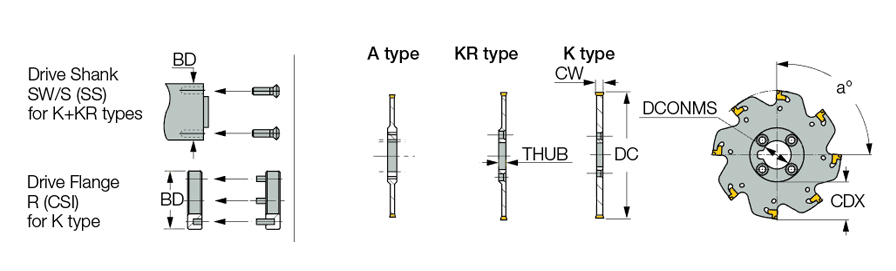

| Cutting Diameter (DC) | 3.94″ | Master Insert Identification (MIID) | TAG N1.6C |
| Cutting Item Count (CICT) | 10 | Application | | Side Slotting | Slitting | |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 | Rotational Speed Maximum (RPMX) | 800 Rev/min |
| Cutting Depth Maximum (CDX) | 1.18″ | Tool Type | Slitting cutters |
| Hub Diameter (DHUB) | 1.54″ | Measurement Type | Inch |
| Hub Thickness (THUB) | 0.05″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.065″ | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 0.063″ | Unit | I |
Product Features

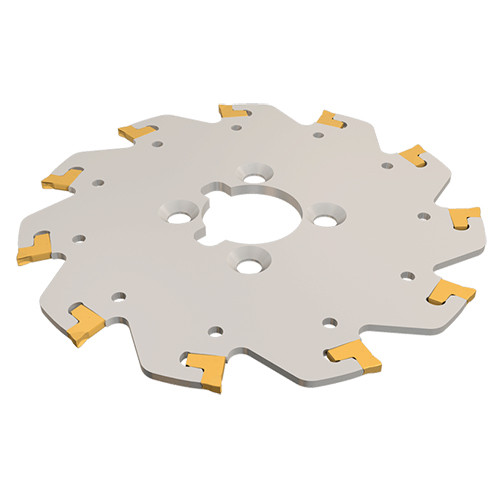

| Family Description | TANGSLIT slitting cutters carrying TANG-GRIP inserts. | FamilyName | TGSF |
| Remarks | DC varies slightly due to different chip formers having different lengths For precision operations it is recommended to verify diameter offset before machining For drive flange set dimensions, refer to Related Holder | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2646
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
TGSF
BrandName
Iscar
