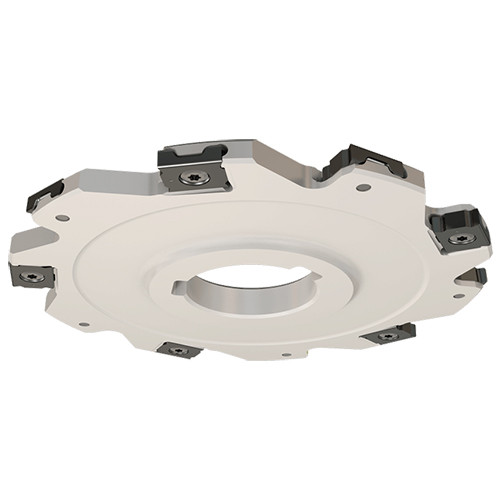

SDN D100-04-27-LN08
Disk type grooving and slitting cutters carrying tangentially clamped inserts with 4 cutting edges.
Price: Log in For Price

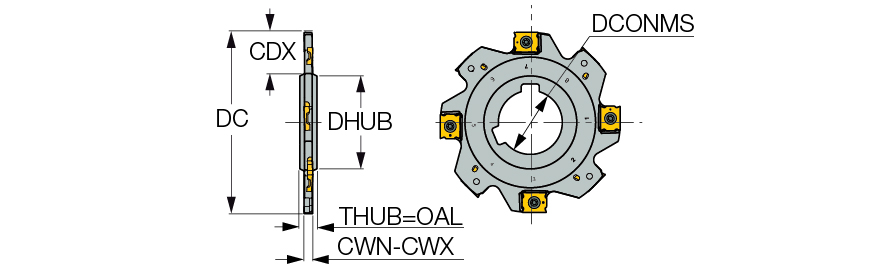

| Cutting Diameter (DC) | 100 mm | Flute Count (NOF) | 12 |
| Cutting Item Count (CICT) | 12 | Master Insert Identification (MIID) | LNET 082604-TN-N |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Application | | Side Slotting | Slitting | Slotting | |
| Cutting Depth Maximum (CDX) | 27 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 42 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 8 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 4.5 mm | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 4 mm | Unit | M |
Product Features
| Family Description | Disk type grooving and slitting cutters carrying tangentially clamped inserts with 4 cutting edges. | FamilyName | SDN-LN08 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4110
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
SDN-LN08
BrandName
Iscar
