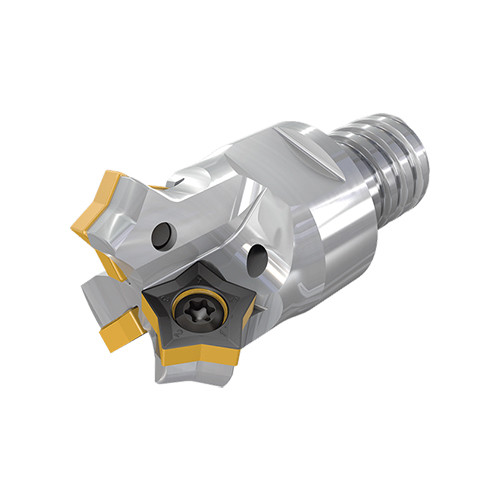

CH45-17/.67-2-MMT08-PN06
Upper and bottom chamfering endmills with a MULTI-MASTER thrded adaptation carrying pentagonal inserts with 5 front and 5 back cutting edges.
Price: Log in For Price

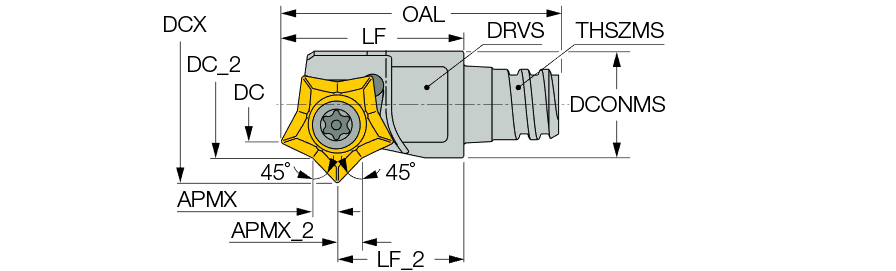

| Cutting Diameter (DC/DCX) | 16.7 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| Cutting Diameter (DC) | 11.4 mm | Drive Size (DRVS) | 10 mm |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 1.5 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 25.5 mm | Measurement Type | Metric |
| Application | | Chamfering & Bottom Deburring | Countersinking | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 12.2 mm | Cutting Diameter Maximum (DCX) | 16.7 mm |
| Master Insert Identification (MIID) | PNMT 0602 | Unit | M |
| Functional Length (LF) | 18 mm |
Product Features
| Family Description | Upper and bottom chamfering endmills with a MULTI-MASTER thrded adaptation carrying pentagonal inserts with 5 front and 5 back cutting edges. | FamilyName | CH45-MM-PN06 |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation options, click on More Info . | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0660
Name
Indexable End Mills
FamilyName
CH45-MM-PN06
BrandName
Iscar
