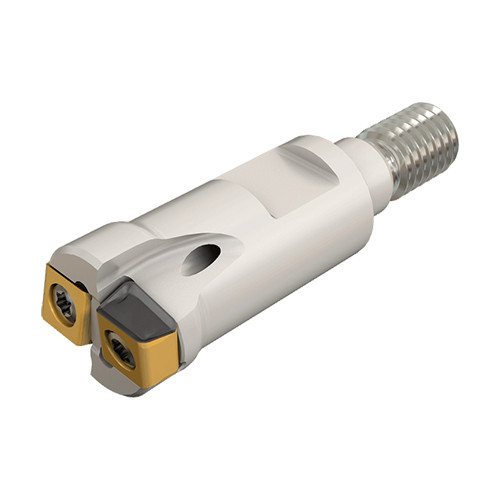

HTP D20-3-M10-LN06
TANGPLUNGE, Side plungers with FLEXFIT connection carrying tangentially clamped inserts with 4 cutting edges. 5 mm side plunging capacity and 2.5 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom
Price: Log in For Price

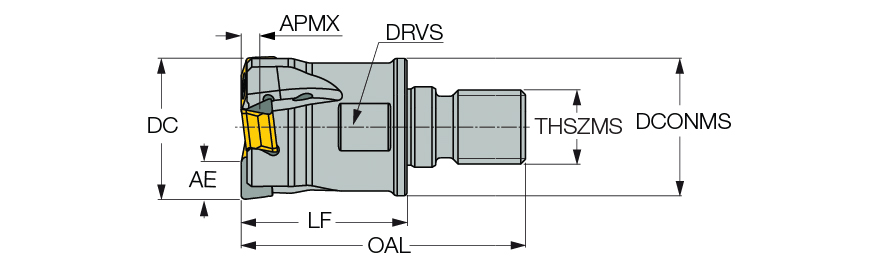

| Application | | Shouldering | Side Plunging | | Measurement Type | Metric |
| Cutting Diameter (DC) | 20 mm | Tool Type | Plungers cutters |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 30 mm |
| Depth of Cut Maximum (APMX) | 2.5 mm | Body Material | Steel |
| Face Effective Cutting Edge Count (ZEFF) | 3 | Body Diameter (BD) | 18 mm |
| Overall Length (OAL) | 50 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | TANGPLUNGE, Side plungers with FLEXFIT connection carrying tangentially clamped inserts with 4 cutting edges. 5 mm side plunging capacity and 2.5 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom | FamilyName | HTP-M-LN06 |
| Remarks | For adaptation, click on More Info. Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1150
Name
Plunge Mills
FamilyName
HTP-M-LN06
BrandName
Iscar
