DNMG 110404-FFC IC520N

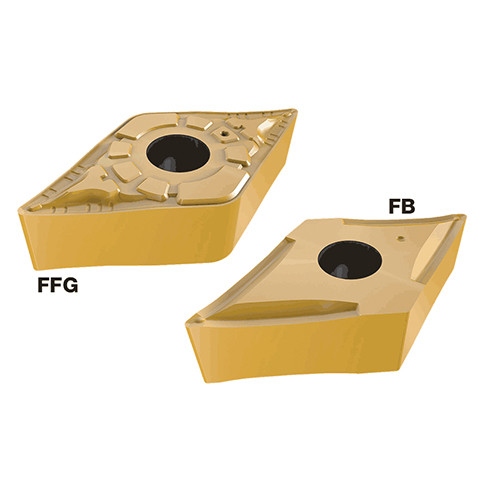

Double-sided 55° rhombic cermet grade inserts, for semi-finishing and finishing applications on steel and cast iron.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Fixing Hole Diameter (D1) | 3.81 mm |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Tool Type | Turn Negative Inserts |
| Insert Style | DNMG | Min D.O.C. | 0.8 mm |

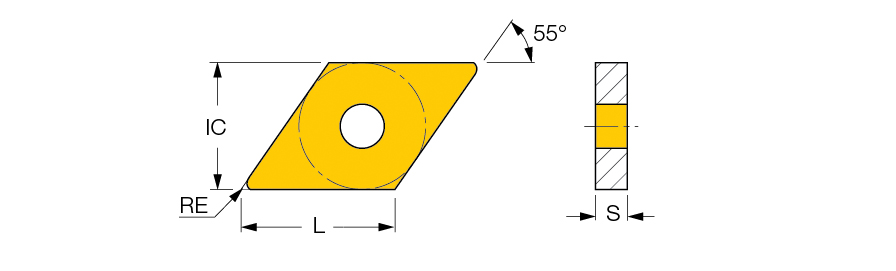

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Insert Size | 331-FF | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Cutting Edge Length (L) | 11.63 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | TiCN+TiN | Unit | M |
| Grade | IC520N |
Product Features
| Family Description | Double-sided 55° rhombic cermet grade inserts, for semi-finishing and finishing applications on steel and cast iron. | FamilyName | DNMG-CERMET |

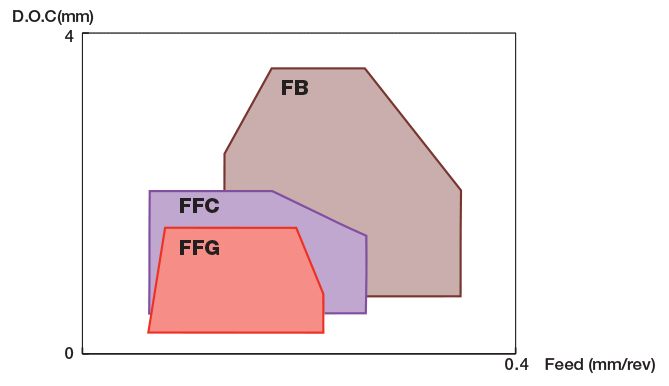

| Remarks | For chipformer selection guide of cermet inserts, and for dimensions and tolerances, click on More Info | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0046
Name
Turning Indexable Inserts
FamilyName
DNMG-CERMET
BrandName
Iscar
