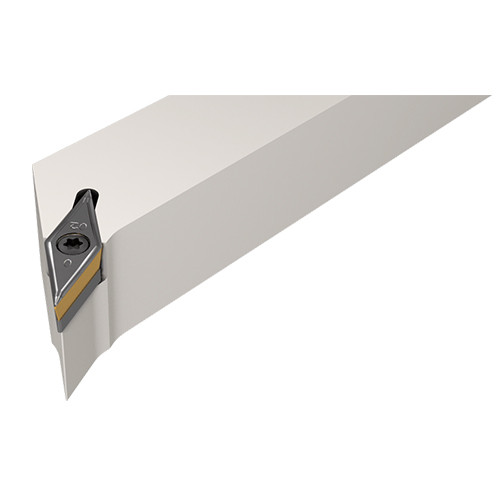

SVXCR 2525M-16
112° lead angle screw lock tools carrying 35° diamond inserts with 7° clearance angle.

Price: Log in For Price

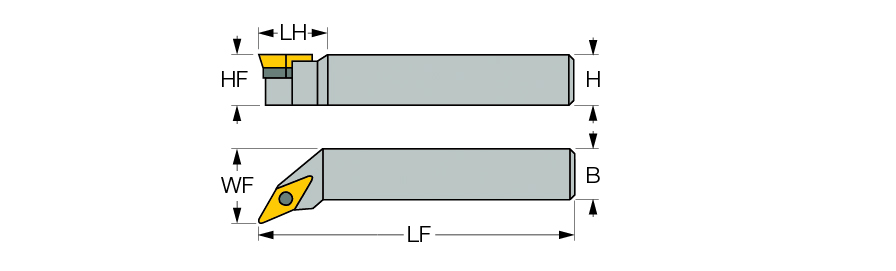

Shank Height (H) | 25 mm | Application | | Ext. 35° Diamond 112° Approach | |
Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | 0 Degrees |
Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | 0 Degrees |
Head Length (LH) | 30 mm | Body Material | Steel |
Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
Cutting Direction (HAND) | Right Hand | Unit | M |
Master Insert Identification (MIID) | VC..1604 |

Product Features
Family Description | 112° lead angle screw lock tools carrying 35° diamond inserts with 7° clearance angle. | FamilyName | SVXCR/L |
COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.7190
Name
General Indexable Turning Tools
FamilyName
SVXCR/L
BrandName
Iscar
