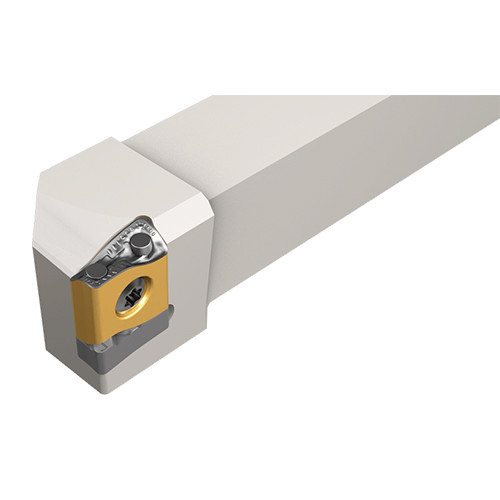

SLANL 16-11 TANG
Screw-lock tools carrying the LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning.
Price: Log in For Price

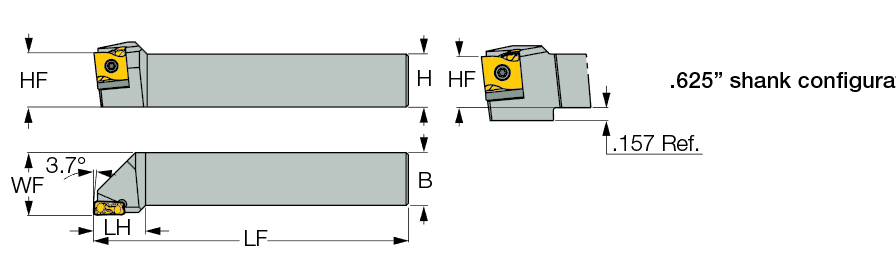

| Shank Height (H) | 1″ | Application | | Ext. Tangential 93° Approach | |
| Shank Width (B) | 1″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 6″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 1″ | Body Material | Steel |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | LNMX 11 | Unit | I |
Product Features
| Family Description | Screw-lock tools carrying the LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning. | FamilyName | SLANR/L-TANG |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.9555
Name
General Indexable Turning Tools
FamilyName
SLANR/L-TANG
BrandName
Iscar
