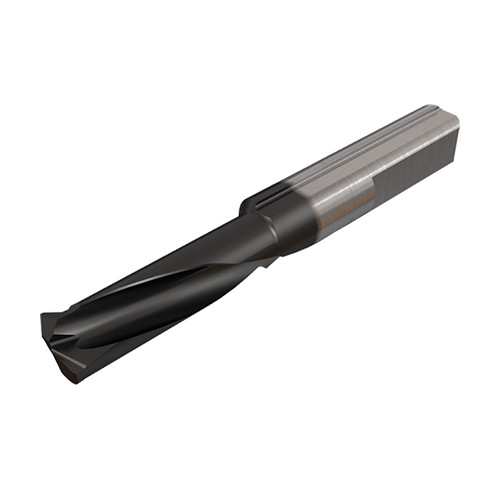

PICCO R-MFT60 6-5 L10 IC908
Solid Carbide Tools for Drilling, Facing, Internal / External Turning and Threading on Swiss and Small CNC Machines. Part of the PASSPORT system
Price: Log in For Price

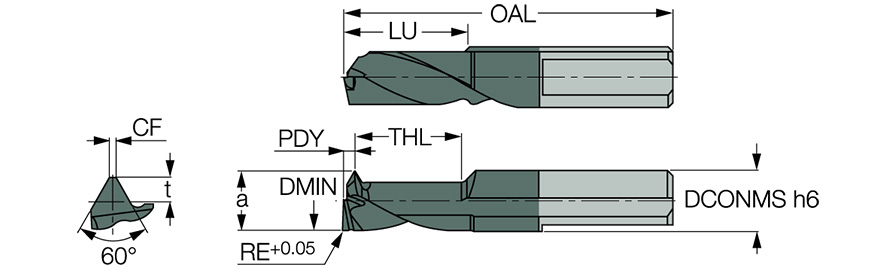

| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 10 mm |
| Minimum Bore Diameter (DMIN) | 5 mm | Central Flat (CF) | 0.06 mm |
| Functional Length (LF) | 32 mm | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | Solid Carbide Turn Tool |
| Grade | IC908 | Measurement Type | Metric |
| Application | | Drill Face Ext Int Turn Thread | | Thread Standard | THFT | |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
| Front End Width (a) | 4.9 mm | Unit | M |
| Corner Radius (RE) | 0.1 mm |
Product Features
| Family Description | Solid Carbide Tools for Drilling, Facing, Internal / External Turning and Threading on Swiss and Small CNC Machines. Part of the PASSPORT system | FamilyName | PICCO-MFT |
| Remarks | Applications: Drilling; face turning; internal chamfering; internal turning/boring; internal profiling; external chamfering; external turning; internal and external 60° threading (right- and left-hand) DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0120
Name
Solid Boring Bars
FamilyName
PICCO-MFT
BrandName
Iscar
