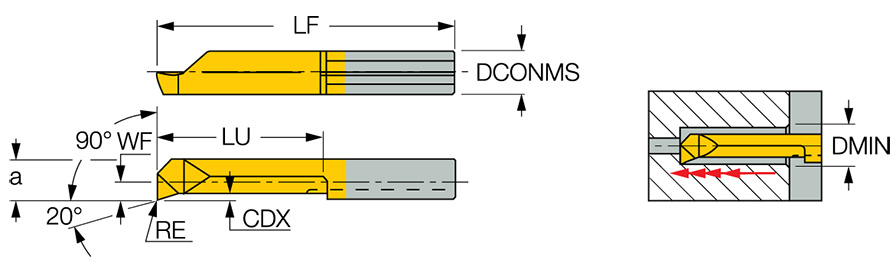

| Connection Diameter Machine Side (DCONMS) | 5 mm | Corner Radius (RE) | 0.15 mm |
| Minimum Bore Diameter (DMIN) | 5 mm | Cutting Depth Maximum (CDX) | 0.5 mm |
| Functional Length (LF) | 35 mm | Functional Width (WF) | 1.9 mm |
| Cutting Direction (HAND) | Left Hand | Usable Length (LU) | 19 mm |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC228 | Cutting Edge Material | Carbide |
| Application | | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Front End Width (a) | 4.4 mm | Unit | M |
Product Features
| Family Description | Inserts for internal turning and profiling, Dmin 2.8mm. | FamilyName | PICCO R/L 090 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0110

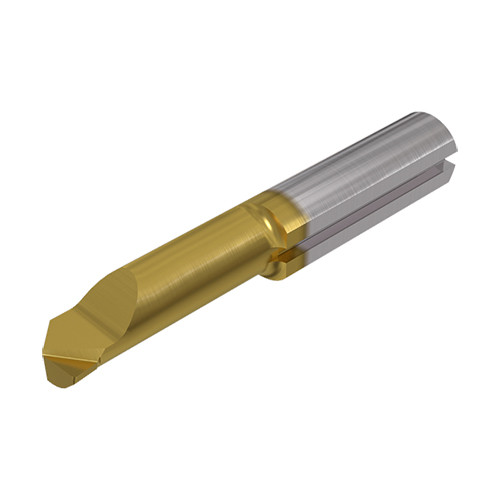

Name
Solid Boring Bars
FamilyName
PICCO R/L 090
BrandName
Iscar
