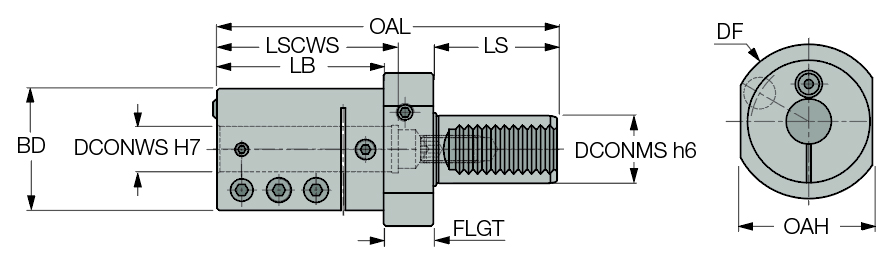

| Connection Diameter Machine Side (DCONMS) | 60 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 50 mm | Shank Length (LS) | 94 mm |
| Clamping Length Workpiece Side (LSCWS) | 180 mm | Flange Diameter (DF) | 123 mm |
| Body Diameter (BD) | 83 mm | Overall Height (OAH) | 85 mm |
| Body Length (LB) | 172 mm | Overall Length (OAL) | 296 mm |
| Measurement Type | Metric | Unit | M |
Product Features
| Family Description | VDI holders for Anti-Vibration tools | FamilyName | VDI AV-JHP |
| COO | China | BrandName | Iscar |
Shipping Info
Weight per item
8.8340
Name
Adapters
FamilyName
VDI AV-JHP
BrandName
Iscar
