HSK A63 SRKIN25X115

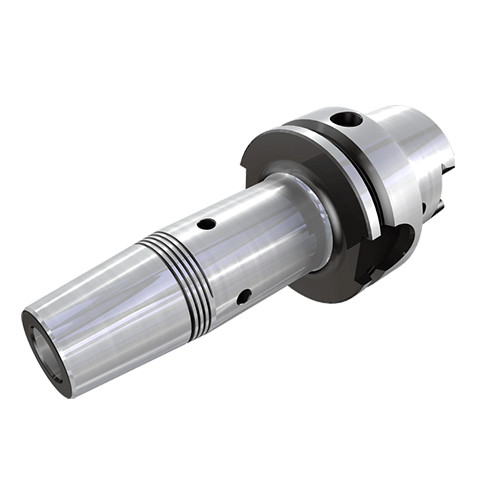

Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools.
Price: Log in For Price
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Tool Type | HSK |
| Shank Size (SS) | 63 | Body Material | Steel |
| Body Length (LB) | 55 mm | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 115 mm | Unit | M |
| Overall Length (OAL) | 147 mm |
Product Features
| Family Description | Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools. | FamilyName | HSK A-SRKIN |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) Use only inductive heating device for SRKIN holders For solid carbide, HSS and steel tools. For shank dimensions and shrink units information, Click on More Info ISCAR cannot guarantee an unbalance value less than 1 gr x mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.8160
Name
Shrink Fit Holders
FamilyName
HSK A-SRKIN
BrandName
Iscar
