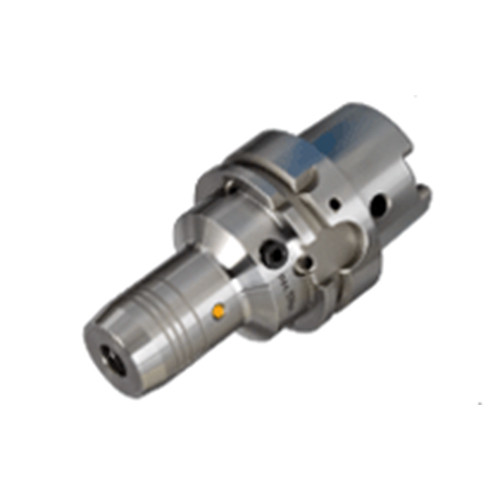

HSK A50 HYDRO 1/4X3.150
Hydraulic chucks with HSK DIN69893 form A tapered shanks.
Price: Log in For Price
| Body Length (LB) | 1.299″ | Tool Type | HSK |
| Connection Diameter Workpiece Side (DCONWS) | 1/4″ | Measurement Type | Inch |
| Body Diameter (BD) | 1.024″ | Body Material | Steel |
| Protruding Length (LPR) | 3.15″ | Connection Code Machine Side (CCMS) | HSK |
| Shank Size (SS) | 50 | Unit | I |
Product Features
| Family Description | Hydraulic chucks with HSK DIN69893 form A tapered shanks. | FamilyName | HSK A-HYDRO |
| Remarks | Chucking forces will significantly decrease if reduction sleeves are used (order separately). A cooling tube must be used with coolant through HSK spindles (order separately). Clamping wrench (wrench HYDRO HEX4) and test bar to be7ordered separately. Reduction sleeves are available for .75, and 1.25 bore diameters (must be ordered separately). | BrandName | Iscar |
| COO | Germany |
Shipping Info
Name
Hydraulic Holders
FamilyName
HSK A-HYDRO
BrandName
Iscar
