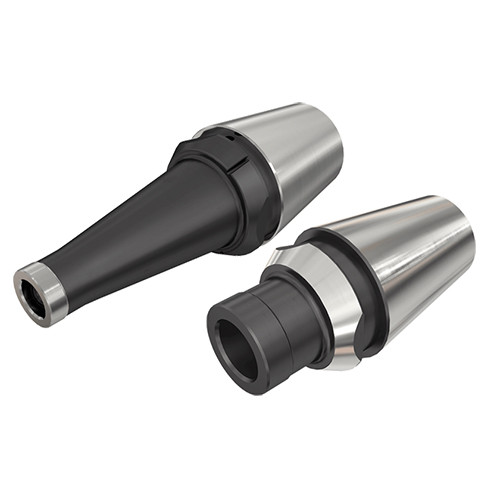

ER32 ODP M16X25
FLEXFIT threaded adaptation with integral ER collet for ER collet chucks.
Price: Log in For Price

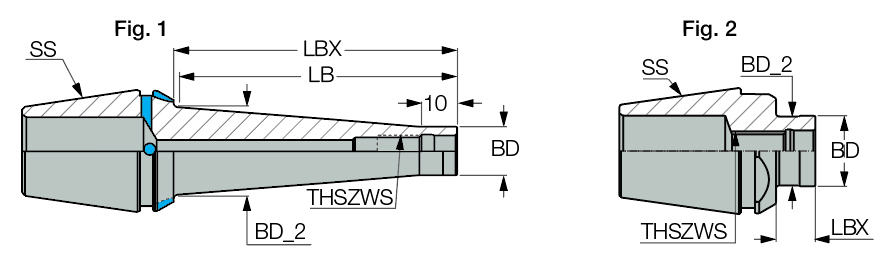

| Shank Size (SS) | ER32 | Connection Thread Nominal Size Workpiece Side (THSZWS) | M16 |
| Protruding Length (LPR) | 25.5 mm | Tool Type | Accessories and Devices |
| Body Length (LB) | 25.5 mm | Measurement Type | Metric |
| Body Diameter (BD) | 27 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Unit | M |
Product Features
| Family Description | FLEXFIT threaded adaptation with integral ER collet for ER collet chucks. | FamilyName | ER-ODP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1920
Name
Drill Chucks & Adapters
FamilyName
ER-ODP
BrandName
Iscar
