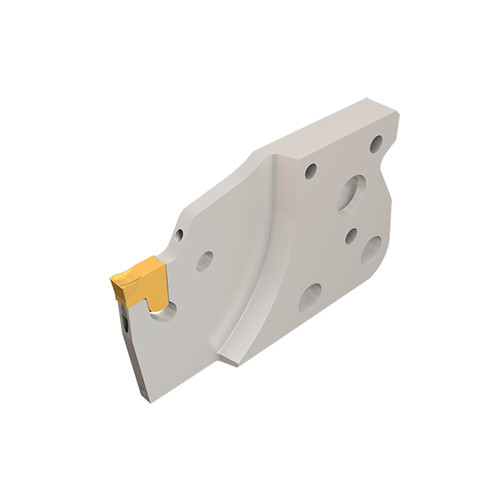

TAGPAD 2L-D52-JHP
MODULAR-GRIP adapters with high-pressure coolant channels for parting and grooving inserts.
Price: Log in For Price

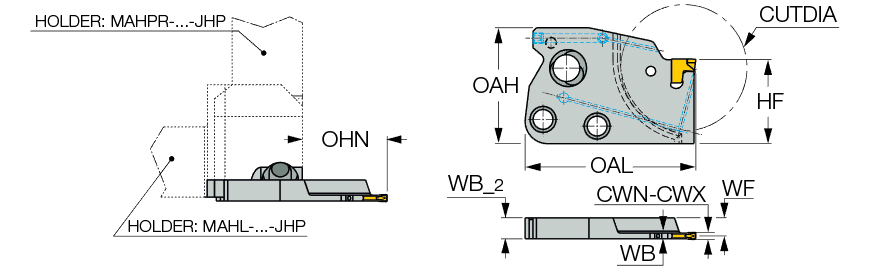

| Body Width (WB) | 1.65 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 1.8 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 52 mm |
| Cutting Width Maximum (CWX) | 2.4 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 53.4 mm | Measurement Type | Metric |
| Overall Height (OAH) | 33 mm | Body Width_2 (WB_2) | 6 mm |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 61.87 mm |
| Body Material | Steel | Unit | M |
Product Features
| Family Description | MODULAR-GRIP adapters with high-pressure coolant channels for parting and grooving inserts. | FamilyName | TAGPAD-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0490
Name
Parting Off Indexable Holders
FamilyName
TAGPAD-JHP
BrandName
Iscar
