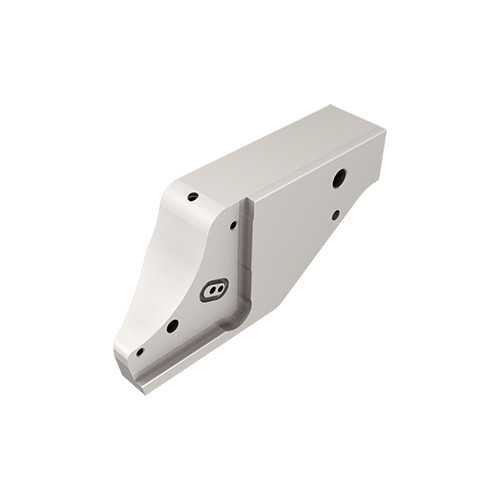

TGTBQ 25R-D120-JHP-MC
Tool blocks for parting and grooving square adapters TANG-F-GRIP & DO-F-GRIP for high-pressure coolant with three cooling inlets
Price: Log in For Price

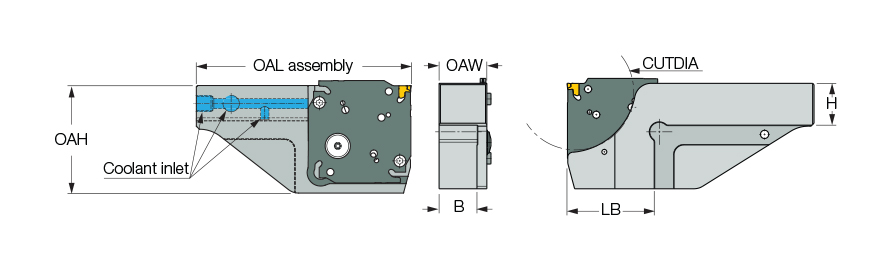

| Shank Height (H) | 25 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 120 mm |
| Shank Width (B) | 26.5 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 158 mm | Measurement Type | Metric |
| Overall Height (OAH) | 95 mm | Tool Assembly Length (LTA) | 2.5 mm |
| Functional Length (LF) | 67.5 mm | Unit | M |
| Body Material | Steel |
Product Features
| Family Description | Tool blocks for parting and grooving square adapters TANG-F-GRIP & DO-F-GRIP for high-pressure coolant with three cooling inlets | FamilyName | TGTBQ-JHP-MC |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.5380
Name
Parting Off Indexable Holders
FamilyName
TGTBQ-JHP-MC
BrandName
Iscar
