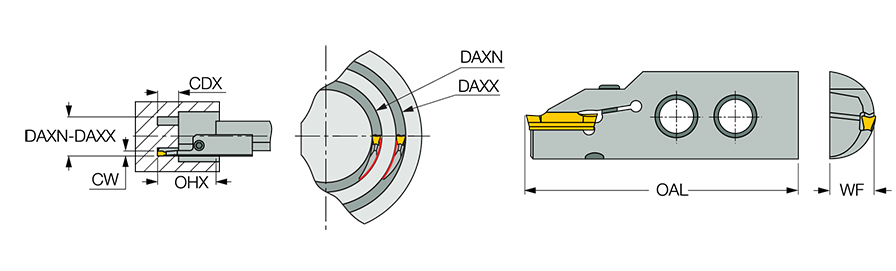

| Cutting Depth Maximum (CDX) | 9 mm | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Width (CW) | 3 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 34 mm | Functional Width (WF) | 10.2 mm |
| Axial Groove Outside Diameter Minimum (DAXN) | 25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 55 mm | Unit | M |
Product Features

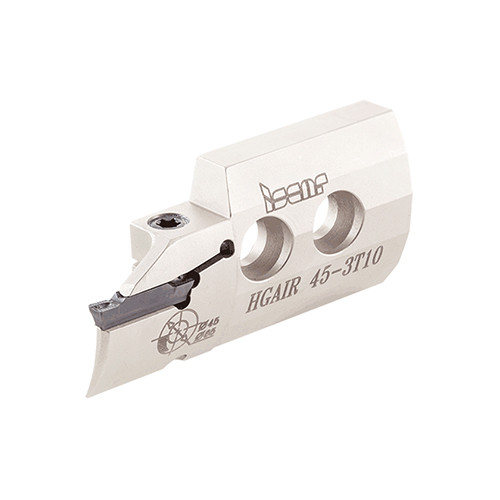

| Family Description | Adapters for internal face grooving and turning, Dmin 12 mm. | FamilyName | HGAIR/L-3 |

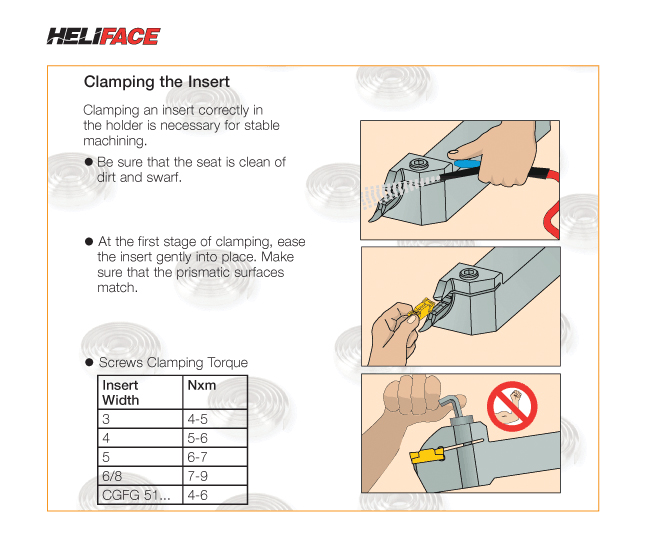

| Remarks | HGN & GRIP 3.. inserts can be used only with right-hand adapters, HGPL 3.. inserts with left-hand adapters. For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFAIR For inserts clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0680
Name
Face Groove/Turn Indexable Holders
FamilyName
HGAIR/L-3
BrandName
Iscar
