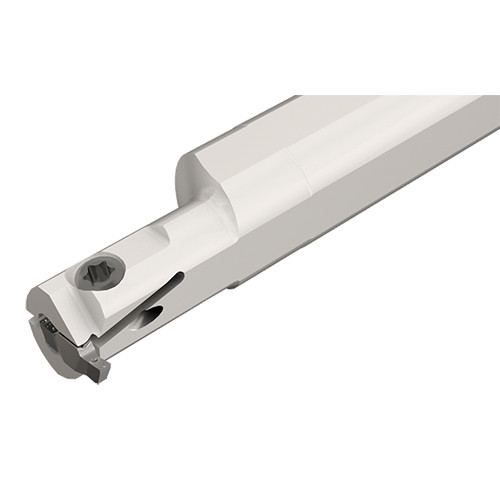

GEHIML 15.9-16
Internal machining boring bars with coolant holes, using GEMI and GEPI inserts in smaller than .075″ widths (the insert is not fully supported).
Price: Log in For Price

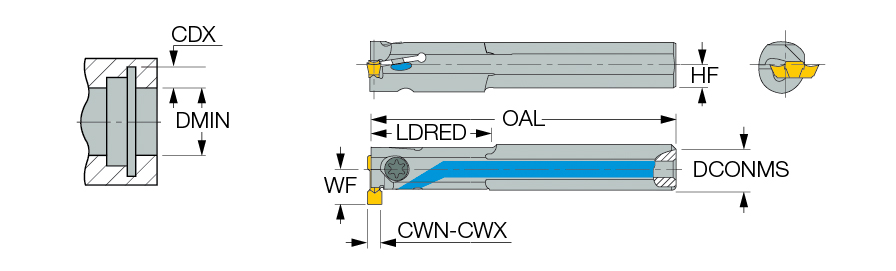

| Cutting Width Minimum (CWN) | 0.031″ | Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Cutting Width Maximum (CWX) | 0.075″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 0.098″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.63″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 0.41″ | Measurement Type | Inch |
| Head Length (LH) | 1.57″ | Unit | I |
| Overall Length (OAL) | 6″ |
Product Features
| Family Description | Internal machining boring bars with coolant holes, using GEMI and GEPI inserts in smaller than .075″ widths (the insert is not fully supported). | FamilyName | GEHIMR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.5115
Name
Groove/Turn Indexable Holders
FamilyName
GEHIMR/L
BrandName
Iscar
