‎ECAI-B3 1-4CR0-7EC IC1508

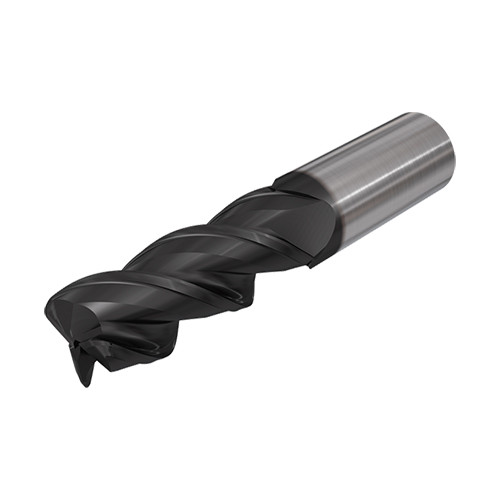

DLC coated 3 flute endmills for machining Aluminum and other non-ferrous materials.
FLASHSOLID
Item # ISC3398961
Brand: Iscar
Mfr#: 3398961
UOM: EA
Price: Log in For Price
Quantity Available
loading...

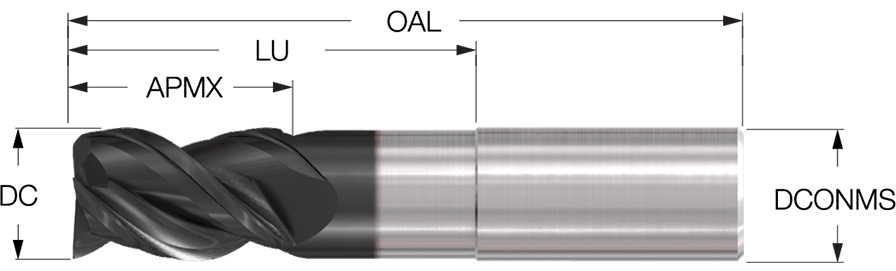

Cutting Diameter (DC) 1″ Corner Radius (RE) 0″
Connection Diameter Machine Side (DCONMS) 1″ Ramping Angle Maximum (RMPX) 5 Degrees
Depth of Cut Maximum (APMX) 4″ Grade IC1508
Overall Length (OAL) 7″ Tool Type Solid carbide center cutting endmills 90°
Cutting Edge Material Carbide Maximum Feed per Tooth (fz(max)) 0.01 ″/tooth
Coating DLC Minimum Feed per Tooth (fz(min)) 0.004 ″/tooth
Flute Count (NOF) 3 Coolant Supply Property (CSP) External
Shank Type Round Body Material Carbide
End Shape Corner Radius Decimal Equivalent 1″
Usable Length (LU) 4″ Measurement Type Inch
Applicable Material | Aluminum / Non-Ferrous Materials | Unit I
Application | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
‎ECAI-B3 1-4CR0-7EC IC1508

Product Features

Family Description DLC coated 3 flute endmills for machining Aluminum and other non-ferrous materials. FamilyName ECAI-B3-EC
COO USA BrandName Iscar
