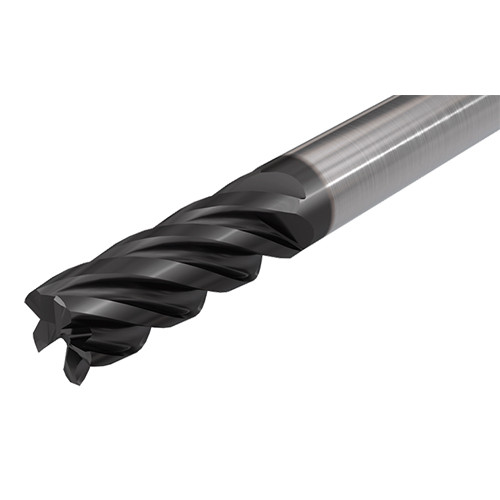

ECI-E4L750-1.5/2.25W75CF IC900
4 flute chatter free endmills with 38° helix and variable pitch for roughing and finishing on alloyed and stainless steel, titanium and exotic materials. High material removal rates and full slot milling - up to 2XD.
Price: Log in For Price

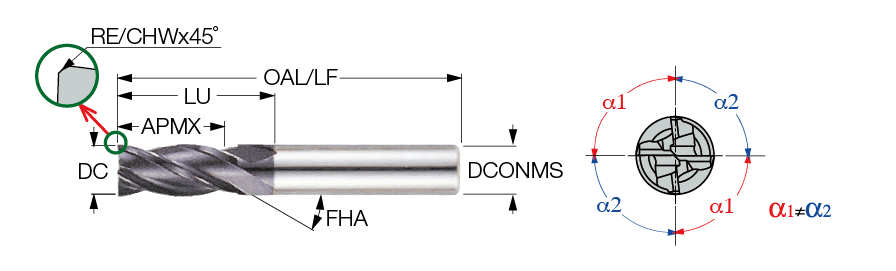

| Cutting Diameter (DC) | 3/4″ | Grade | IC900 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Neck Diameter (DN) | 0.716″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 4-1/2″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.007 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Weldon | Decimal Equivalent | 0.75″ |
| End Shape | Chamfer | Measurement Type | Inch |
| Usable Length (LU) | 2-1/4″ | Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Corner Chamfer Width (CHW) | 0.024″ | Unit | I |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
Product Features
| Family Description | 4 flute chatter free endmills with 38° helix and variable pitch for roughing and finishing on alloyed and stainless steel, titanium and exotic materials. High material removal rates and full slot milling - up to 2XD. | FamilyName | ECI-E4-CF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.9127
Name
Square & Corner Radius End Mills
FamilyName
ECI-E4-CF
BrandName
Iscar
