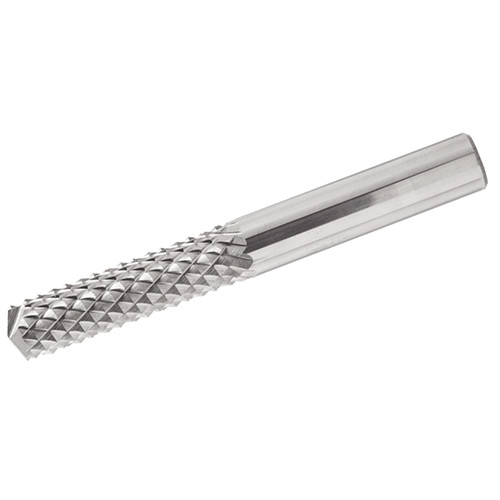

EPND-C6 024-10C03F55 IC02
Solid carbide endmills with special cutting edges also for drill mill operation, for machining of different kind of composite materials. Enables application of high feed and speed due to excellent chip and heat disposal.
Price: Log in For Price

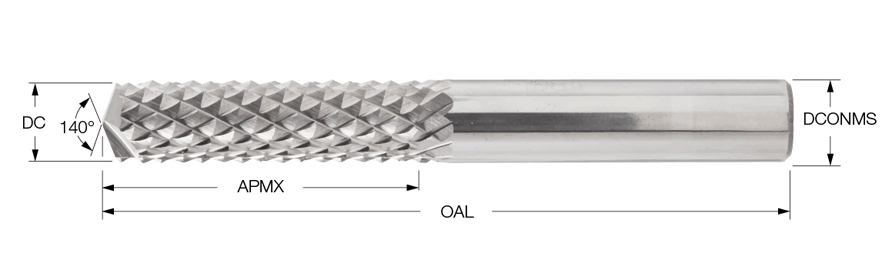

| Cutting Diameter (DC) | 2.4 mm | Neck Diameter (DN) | 2.43 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 10 mm | Tool Type | Solid Carbide Roughers |
| Overall Length (OAL) | 55 mm | Maximum Feed per Tooth (fz(max)) | 0.01 mm/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.005 mm/tooth |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 14 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | e8 |
| Application | | Drill Mill | Edging | | Unit | M |
| Grade | IC02 |
Product Features
| Family Description | Solid carbide endmills with special cutting edges also for drill mill operation, for machining of different kind of composite materials. Enables application of high feed and speed due to excellent chip and heat disposal. | FamilyName | EPND |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0315
Name
Square & Corner Radius End Mills
FamilyName
EPND
BrandName
Iscar
