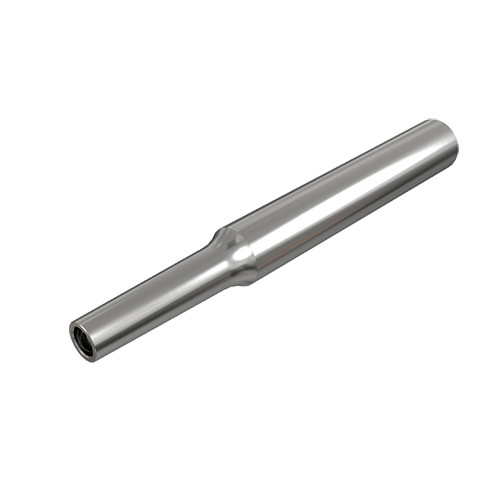

MM S-D-L150-C16-T06-C
MULTI-MASTER, 89° conical shanks for solid carbide interchangeable milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.
Price: Log in For Price

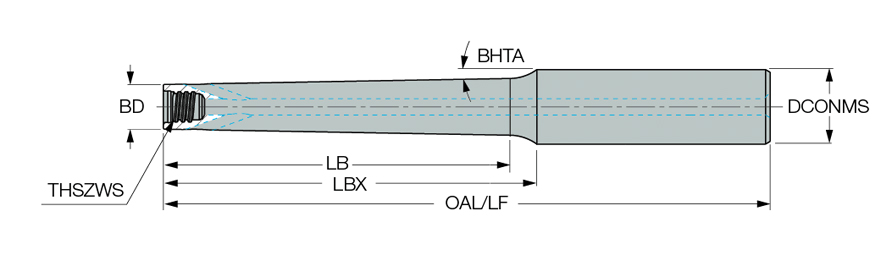

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T06 | Body Length (LB) | 95.4 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Rotational Speed Maximum (RPMX) | 30150 Rev/min |
| Body Length Maximum (LBX) | 100 mm | Body Material | Carbide |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 9.6 mm | Unit | M |
Product Features
| Family Description | MULTI-MASTER, 89° conical shanks for solid carbide interchangeable milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | FamilyName | MM S-D (89° conical shanks) |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection. Shank Material (Shank m.): S-steel,C-carbide,W-tungsten. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3070
Name
Solid End Mill Shanks
FamilyName
MM S-D (89° conical shanks)
BrandName
Iscar
