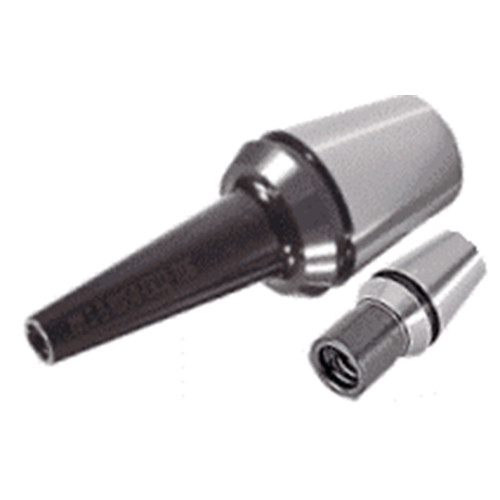

MM S-A-H10.5-ER16-T05
Shanks that mount MULTI-MASTER solid carbide heads with an ER collet adaptation
Price: Log in For Price

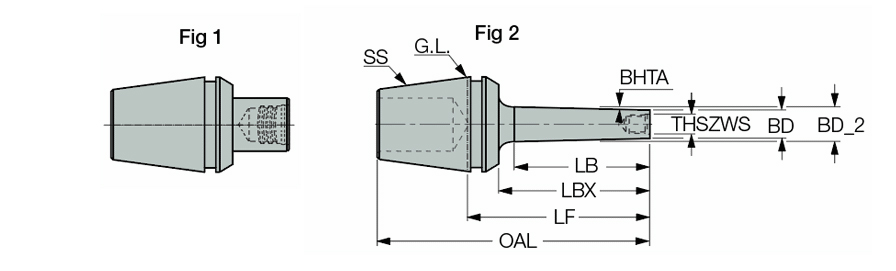

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T05 | Body Diameter (BD) | 7.6 mm |
| Overall Length (OAL) | 38 mm | Functional Length (LF) | 18.1 mm |
| Shank Size (SS) | ER16 | Measurement Type | Metric |
| Body Length Maximum (LBX) | 10.5 mm | Body Material | Steel |
| Tool Type | Spring Collets | Unit | M |
Product Features
| Family Description | Shanks that mount MULTI-MASTER solid carbide heads with an ER collet adaptation | FamilyName | MM S-ER |
| Remarks | Do not apply lubricant to the threaded connection. For adaptation click on More Info. When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by 2.0 mm for ER20 and by 3.0 mm for ER25/ER32 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0390
Name
Solid End Mill Shanks
FamilyName
MM S-ER
BrandName
Iscar
