D3N 180-054-25R-3D

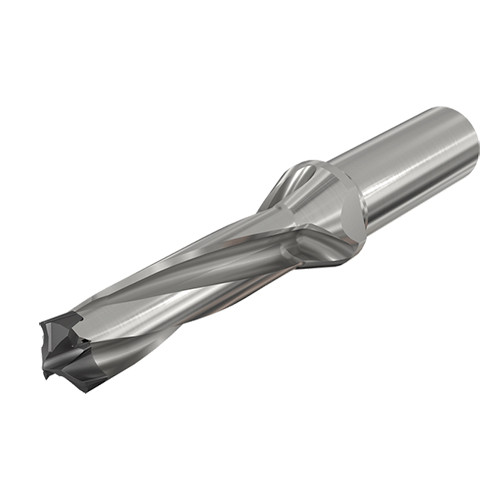

Exchangeable head 3 flute drills with internal coolant holes and round shank, drilling depth 3xD

Price: Log in For Price

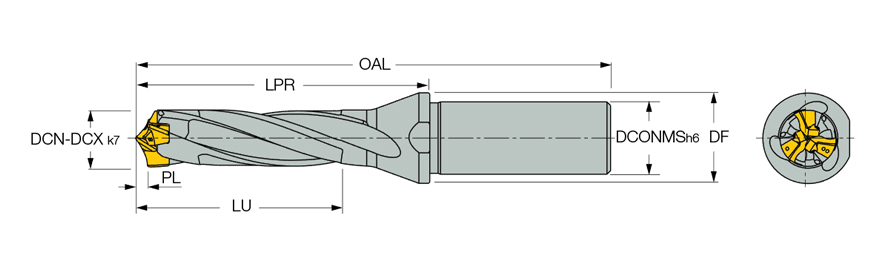

Cutting Diameter (DC) | 18 mm | Shank Length (LS) | 56 mm |
Usable Length (LU) | 57.9 mm | Coolant Supply Property (CSP) | Coolant Thru |
Application | | Drilling | | Measurement Type | Metric |
Connection Diameter Machine Side (DCONMS) | 25 mm | Master Insert Identification (MIID) | H3P 180 |
Insert Seat Size Code (SSC) | 18 | Point Length (PL) | 3.9 mm |
Cutting Diameter Minimum (DCN) | 18 mm | Body Material | Steel |
Cutting Diameter Maximum (DCX) | 18.9 mm | Flange Diameter (DF) | 32 mm |
Protruding Length (LPR) | 91.4 mm | Connection Code Machine Side (CCMS) | Cylindrical |
Overall Length (OAL) | 147.36 mm | Unit | M |


Product Features
Family Description | Exchangeable head 3 flute drills with internal coolant holes and round shank, drilling depth 3xD | COO | Israel |
Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.3930
