D3N 170-085-20R-5D

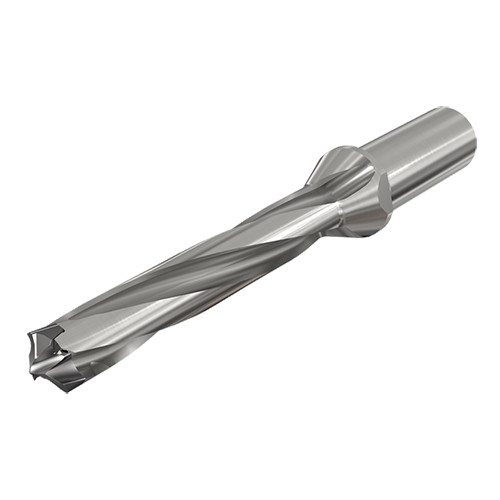

Exchangeable head 3 flute drills with internal coolant holes and round shank, drilling depth 5xD
Price: Log in For Price

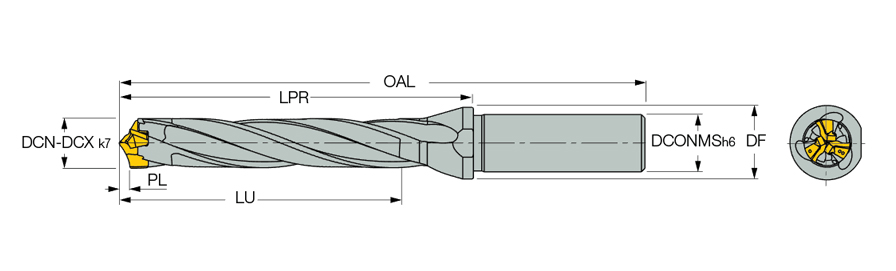

| Cutting Diameter (DC) | 17 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 88.52 mm | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 170 |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Point Length (PL) | 3.52 mm |
| Insert Seat Size Code (SSC) | 17 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 17 mm | Flange Diameter (DF) | 25 mm |
| Cutting Diameter Maximum (DCX) | 17.9 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Protruding Length (LPR) | 120.2 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 170.22 mm | Unit | M |
| Shank Length (LS) | 50 mm |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and round shank, drilling depth 5xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.3010
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
