‎D3N 0827-661-100A-8D

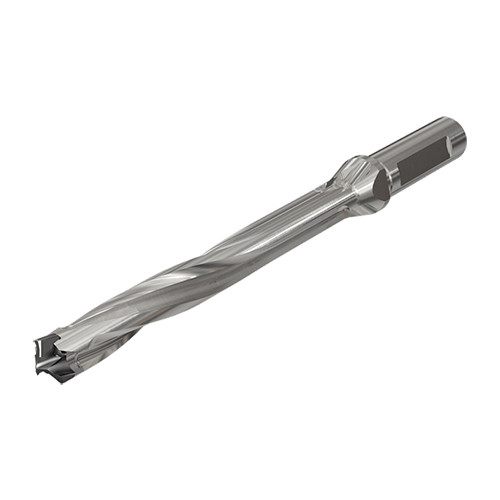

Exchangeable head 3 flute drills with coolant holes and one flat shank. Drilling Depth 8xD
QUICK3CHAM
Item # ISC3392301
Brand: Iscar
Mfr#: 3392301
UOM: EA
Price: Log in For Price
Quantity Available
loading...

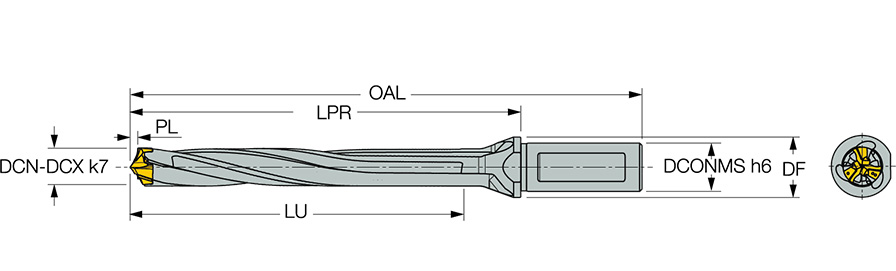

Cutting Diameter (DC) 0.827″ Coolant Supply Property (CSP) Coolant Thru
Usable Length (LU) 6.793″ Measurement Type Inch
Application | Drilling | Master Insert Identification (MIID) H3P 210­IQ
Connection Diameter Machine Side (DCONMS) 1″ Point Length (PL) 0.179″
Insert Seat Size Code (SSC) 21 Body Material Steel
Cutting Diameter Minimum (DCN) 0.827″ Flange Diameter (DF) 1.26″
Cutting Diameter Maximum (DCX) 0.862″ Decimal Equivalent 0.827″
Protruding Length (LPR) 8.32″ Unit I
Overall Length (OAL) 10.524″
‎D3N 0827-661-100A-8D

Product Features

Family Description Exchangeable head 3 flute drills with coolant holes and one flat shank. Drilling Depth 8xD COO Israel
Remarks Do not mount smaller drilling heads other than the specified range of the drill body

Shipping Info

Weight per item
1.1971
