‎MIFR 10-2.50-0.20 IC908

Name: MIFR 10-2.50-0.20 IC908
Brand: MINCUT
SKU: ISC6404047
Price: 40.34 EUR
Availability: InStock

MINCUT screw-clamped inserts for internal face grooving and turning with uninterrupted chip flow

Item # ISC6404047

Brand: Iscar

Mfr#: 6404047

UOM: EA

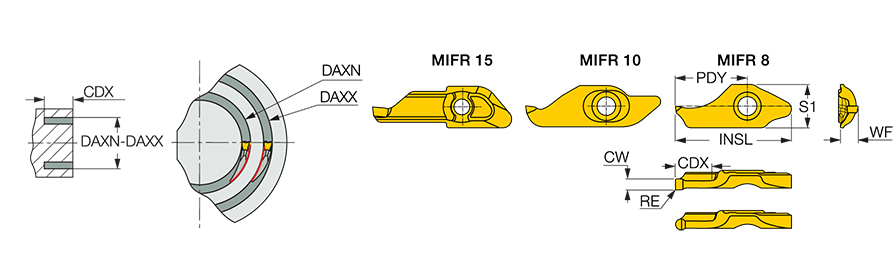

Cutting Width (CW)	2.5 mm	Depth of Cut Maximum (APMX)	0.7 mm
Insert Length (INSL)	25.1 mm	Min D.O.C.	0.2 mm
Corner Radius (RE)	0.2 mm	Axial Groove Outside Diameter Maximum (DAXX)	30 mm
Cutting Depth Maximum (CDX)	9 mm	Axial Groove Outside Diameter Minimum (DAXN)	10 mm
Insert Thickness Total (S1)	7.6 mm	Max. Face Grooving Feed (ffg(max))	0.1 mm/rev
Cutting Edge Material	Carbide	Min. Face Grooving Feed (ffg(min))	0.02 mm/rev
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|	Min. Face Turning Feed (fft(min))	0.02 mm/rev
Grade	IC908	Measurement Type	Metric
Application	\| Face Grooving \| Face Grooving & Turning \| Int. Face Grooving \| Int. Face Recessing \|	Coating	TiAlN
Tool Type	Face Turn-Groove Inserts	Body Material	Carbide
Functional Width (WF)	3.1 mm	Unit	M

Product Features

Family Description	MINCUT screw-clamped inserts for internal face grooving and turning with uninterrupted chip flow	FamilyName	MIFR
Remarks	‎Recommended cutting speeds and feeds can be increased by 20-30% for aluminum, and reduced by 20-30% for titanium and Inconel	BrandName	Iscar
COO	Israel

Weight per item

0.0048

Name

Face Groove/Turn Indexable Inserts

FamilyName

MIFR

BrandName

Iscar
