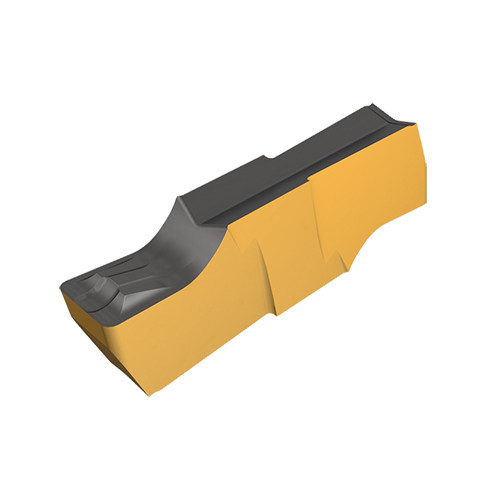

GINI 4.00E-0.40 IC808
Precision double-ended inserts for internal grooving and turning of ductile materials
Price: Log in For Price

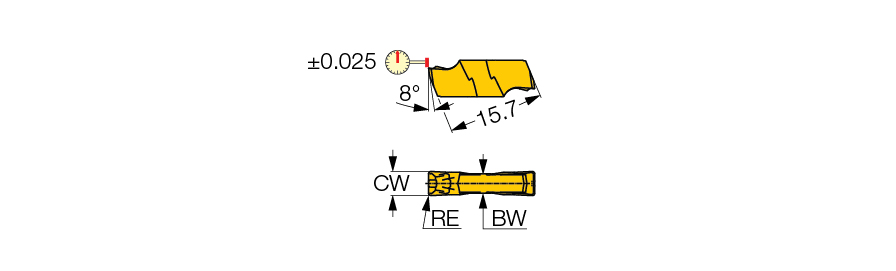

| Cutting Width (CW) | 4 mm | Depth of Cut Maximum (APMX) | 1.6 mm |
| Insert Length (INSL) | 15.7 mm | Min D.O.C. | 0.5 mm |
| Corner Radius (RE) | 0.4 mm | Min. Grooving Feed (fg(min)) | 0.04 mm/rev |
| Cutting Depth Maximum (CDX) | 15.5 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN+AlTiN+TiN |
| Grade | IC808 | Body Material | Carbide |
| Application | | Int. Groove & Turn | Int. Grooving | | Unit | M |
| Tool Type | Groove-Turn Precision Inserts |
Product Features
| Family Description | Precision double-ended inserts for internal grooving and turning of ductile materials | FamilyName | GINI-E |
| Remarks | DMIN for internal applications=20 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0052
Name
Face Groove/Turn Indexable Inserts
FamilyName
GINI-E
BrandName
Iscar
