‎XCMT 06R-202002-MG IC808G

Name: XCMT 06R-202002-MG IC808G
Brand: MULTIFUNCTION TOOLS
SKU: ISC5522273
Price: 31.49 EUR
Availability: InStock

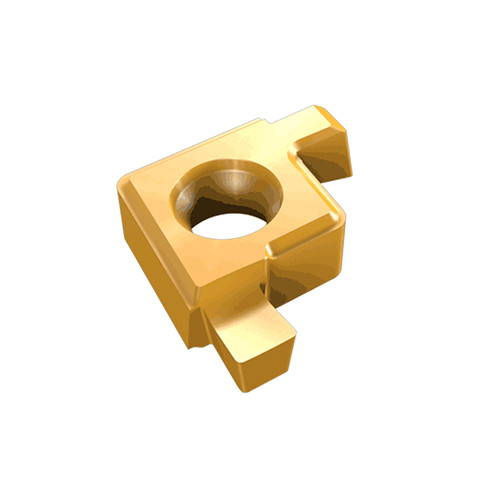

Two cutting edged internal grooving inserts for DR-MF multifunction tools.

Item # ISC5522273

Brand: Iscar

Mfr#: 5522273

UOM: EA

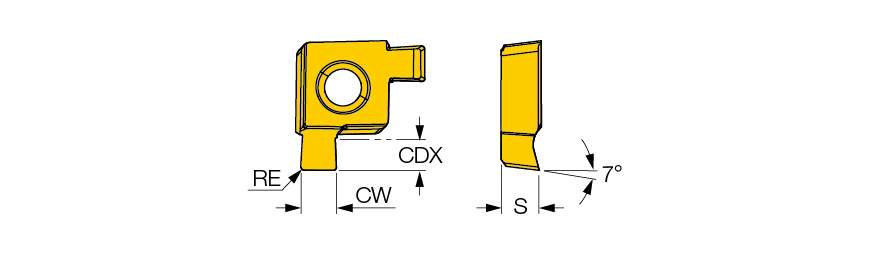

Cutting Width (CW)	2 mm	Applicable Material	\| Steel \| Stainless Steel \| Hard Materials \| Super-Alloys / Titanium \|
Corner Radius (RE)	0.2 mm	Max. Grooving Feed (fg(max))	0.07 mm/rev
Insert Thickness (S)	2.65 mm	Min. Grooving Feed (fg(min))	0.04 mm/rev
Overall Length (OAL)	6.4 mm	Insert Rake Angle (GAN)	7 Degrees
Cutting Depth Maximum (CDX)	2 mm	Tool Type	Parting & Grooving Inserts
Cutting Edge Material	Carbide	Measurement Type	Metric
Coating	TiAlN+AlTiN+TiN	Body Material	Carbide
Grade	IC808G	Cutting Width Tolerance (+/-) (CWTOL)	0.02 mm
Cutting Direction (HAND)	Right Hand	Unit	M
Application	\| Drilling Ext Face Int. Turning \| Ext. Grooving \| Ext. Grooving & Turning \| Int. Groove & Turn \| Int. Grooving \|

Product Features

Family Description	Two cutting edged internal grooving inserts for DR-MF multifunction tools.	FamilyName	XCMT-MG
COO	Korea	BrandName	Iscar

Weight per item

0.0027

Name

Parting Off Indexable Inserts

FamilyName

XCMT-MG

BrandName

Iscar
