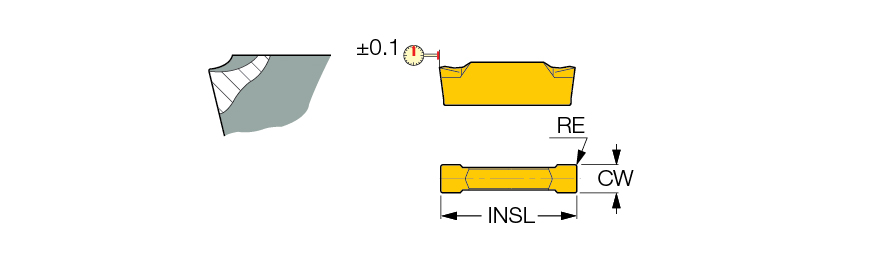

| Cutting Width (CW) | 2.2 mm | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.02 mm | Max. Grooving Feed (fg(max)) | 0.13 mm/rev |
| Overall Length (OAL) | 19.9 mm | Min. Grooving Feed (fg(min)) | 0.04 mm/rev |
| Insert Length (INSL) | 19.9 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Depth Maximum (CDX) | 18 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN | Cutting Width Tolerance (+/-) (CWTOL) | 0.03 mm |
| Grade | IC354 | Unit | M |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | A chipformer for use at low feeds. Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials. The narrow chipformer design ensures short deformed chips. | FamilyName | DGN-UT/UA |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0044
Name

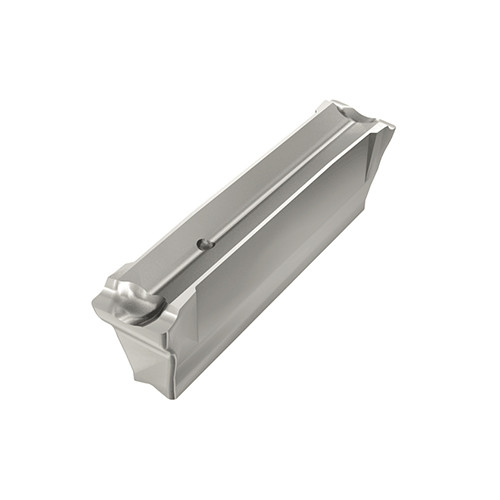

Parting Off Indexable Inserts
FamilyName
DGN-UT/UA
BrandName
Iscar
