GIQR 8-2.22-0.10 IC528

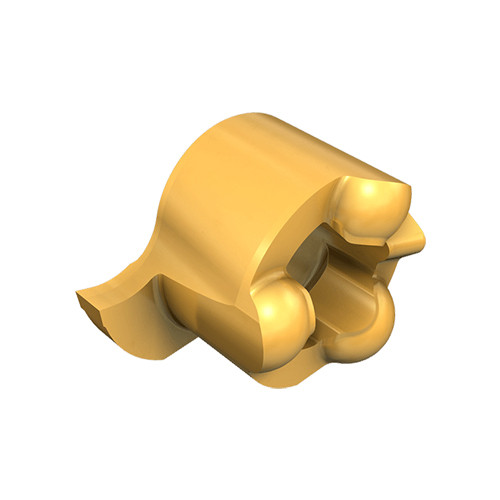

CHAMGROOVE precision ground single-ended inserts for internal grooving and turning
Price: Log in For Price

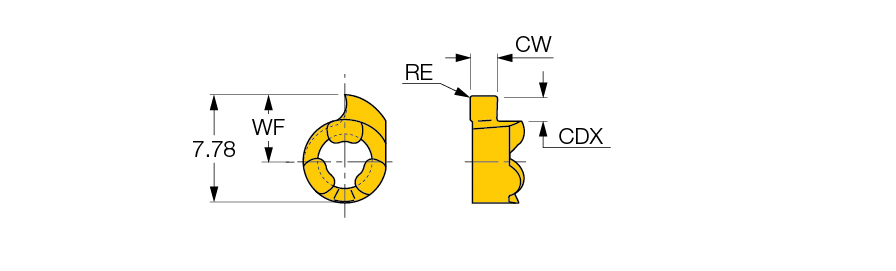

| Cutting Width (CW) | 2.22 mm | Application | | Int. Boring and Profiling | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0.1 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 1.5 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 8 mm | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC528 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | CHAMGROOVE precision ground single-ended inserts for internal grooving and turning | FamilyName | GIQR/L 8 |
| Remarks | According to retaining rings standard DIN 471/472. Can be used for groove milling by circular interpolation | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0025
Name
Groove/Turn Indexable Inserts
FamilyName
GIQR/L 8
BrandName
Iscar
