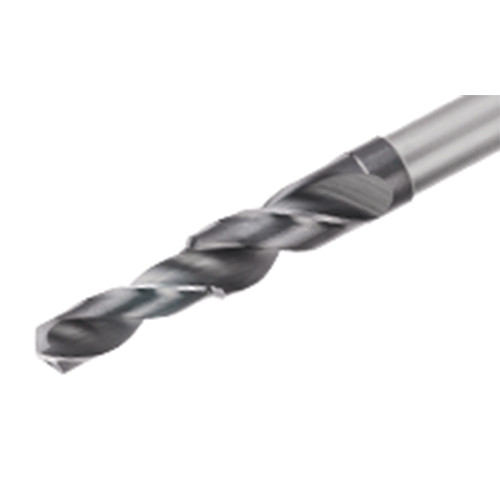

SCDT 085-026-120-M10 IC908
Pre-thread solid carbide drills with coolant holes
Price: Log in For Price

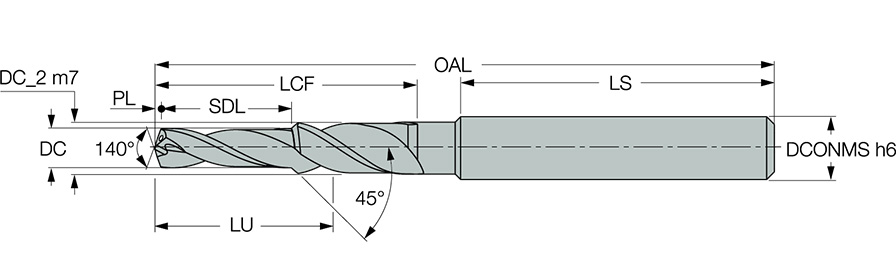

| Drill Bit Size / Cutting Diameter (DC) | 8.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.5 mm | Tool Type | solid carbide Drills |
| Length Group | 3xD | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 45 mm |
| Application | | Chamfering | Drilling | | Length Chip Flute (LCF) | 55 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Overall Length (OAL) | 102 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 100.45 mm | Body Material | Carbide |
| Number of Teeth | 2 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 40 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | Pre-thread solid carbide drills with coolant holes | COO | Italy |
Shipping Info
Weight per item
0.1140
