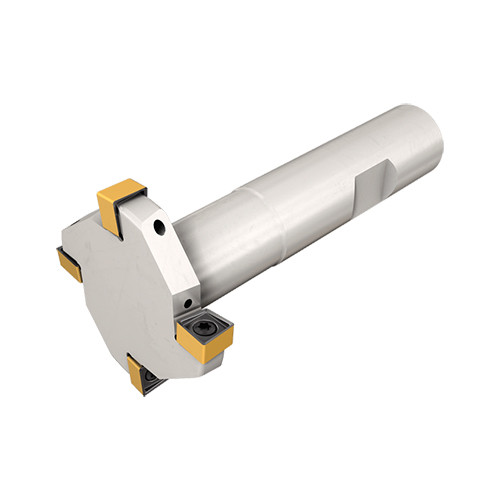

ETS D2.00-.375-W.750-XN06
T-SLOT endmills carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges.
Price: Log in For Price

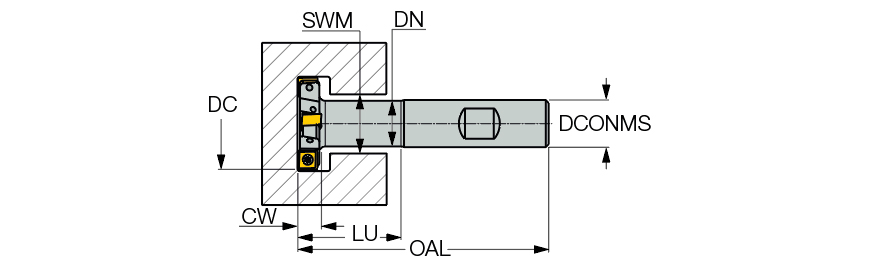

| Cutting Diameter (DC) | 2″ | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Width (CW) | 3/8″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.614″ | Tool Type | Double-sided slotting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Item Count (CICT) | 6 |
| Overall Length (OAL) | 3-1/2″ | Master Insert Identification (MIID) | XNMU 0603... |
| Usable Length (LU) | 1.417″ | Connection Code Machine Side (CCMS) | Weldon |
| Shank Type | Weldon | Unit | I |
Product Features
| Family Description | T-SLOT endmills carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges. | FamilyName | ETS-XN06 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.7584
Name
Disc w/Shank Indexable Slotting Cutters
FamilyName
ETS-XN06
BrandName
Iscar
