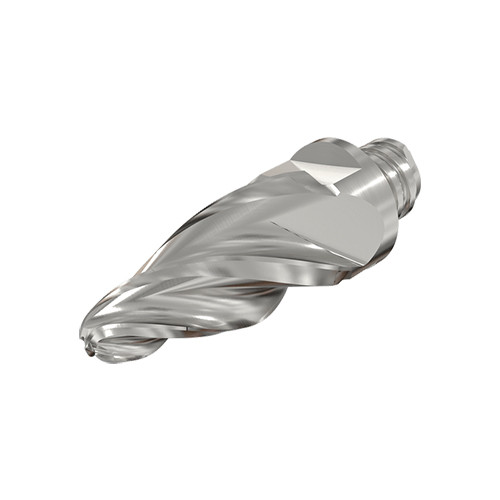

MM EOBA375R31R295A62-4T06 IC08
Interchangeable Oval-Shaped (Barrel) Solid Carbide Heads for 3D Aluminum Profiling. For Semi-Finish & Finishing Applications.
Price: Log in For Price
| Application | | Profiling | | Grade | IC08 |

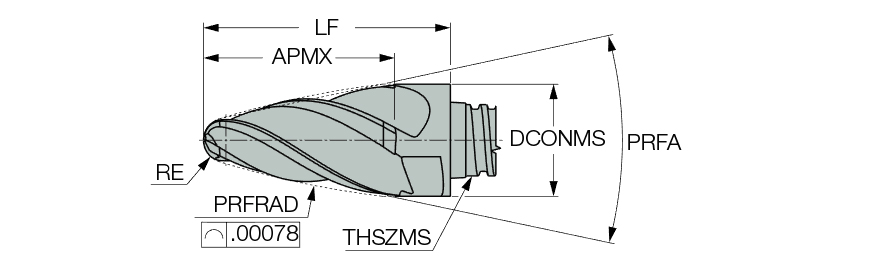

| Cutting Diameter (DC) | 0.24″ | Coating | Uncoated |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Profile Angle (PRFA) | 16 Degrees |
| Flute Count (NOF) | 4 | Tool Cutting Edge Angle (KAPR) | 82 Degrees |
| Corner Radius (RE) | 0.123″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Cutting Diameter Maximum (DCX) | 3/8″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.6″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
| Functional Length (LF) | 0.866″ | Unit | I |
| Overall Length (OAL) | 1.128″ |
Product Features
| Family Description | Interchangeable Oval-Shaped (Barrel) Solid Carbide Heads for 3D Aluminum Profiling. For Semi-Finish & Finishing Applications. | FamilyName | MM EOBA |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0474
Name
Solid End Mill Heads
FamilyName
MM EOBA
BrandName
Iscar
