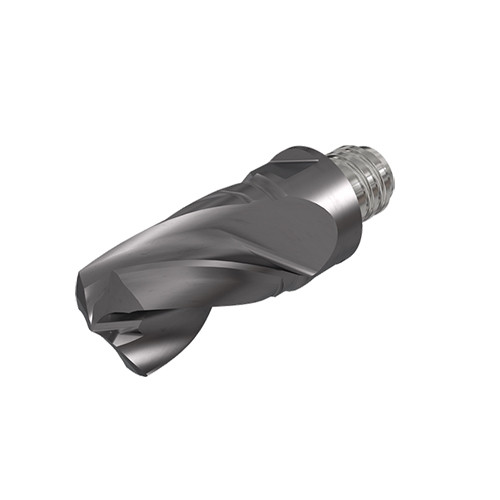

MM SPD110-11-3T08 IC908
Three-flute exchangeable solid carbide drilling heads
Price: Log in For Price
| Application | | Drilling | | Coating | TiAlN |
| Cutting Diameter (DC) | 11 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Tool Type | Solid corner rounding endmills |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 15 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Unit | M |
Product Features
| Family Description | Three-flute exchangeable solid carbide drilling heads | FamilyName | MM SPD-3T |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the thre aded connection | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0360
Name
Solid End Mill Heads
FamilyName
MM SPD-3T
BrandName
Iscar
