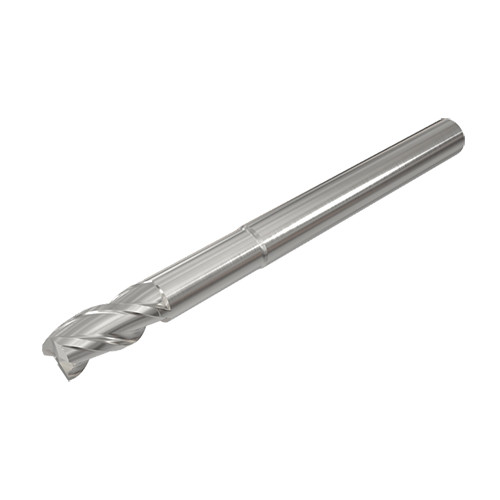

ECAI-B3 .25-1.25CR0-4U IC08
3 flute endmills for machining Aluminum and other non-ferrous materials.
Price: Log in For Price

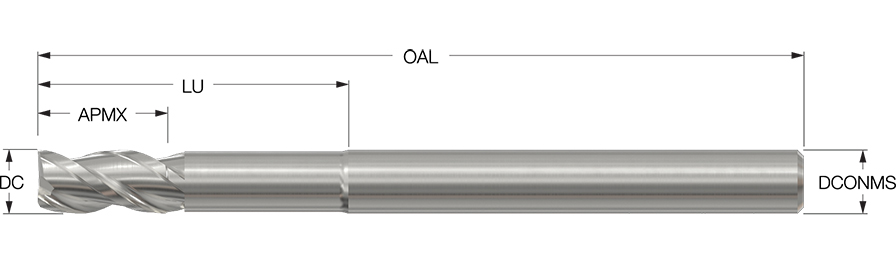

| Cutting Diameter (DC) | 1/4″ | Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 4″ | Grade | IC08 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.25″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1-1/4″ | Unit | I |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Family Description | 3 flute endmills for machining Aluminum and other non-ferrous materials. | FamilyName | ECAI-B3-U |
| COO | USA | BrandName | Iscar |
Shipping Info
Name
Square & Corner Radius End Mills
FamilyName
ECAI-B3-U
BrandName
Iscar
